Product Summary

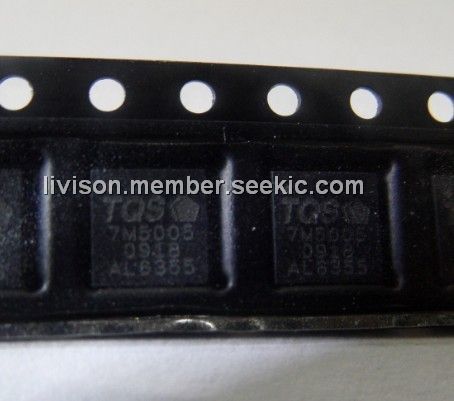

The TQM7M5005 is an extremely small (5x5x1.0mm3) multi-mode power amplifier module for GSM/EDGE applications. This module has been optimized for high EDGE efficiency and EDGE power class E2 operation while maintaining high GSM/GPRS efficiency. The module incorporates two highly integrated InGaP power amplifier die with a CMOS controller. The CMOS controller implements a fully integrated closed-loop power control within the module for GSM Operation. This eliminates the need for any external couplers, power detectors, current sensing etc., to assure the output power level. The latter is set directly from the Vramp input from the DAC. The module has Tx enable, band select, mode (EDGE or GSM) inputs. Module construction is a low-profile over-molded land-grid array on laminate.
Parametrics
Absolute maximum ratings: (1)GSM Pout: 35(at 850 Band), 35(at 900 Band), 33(at DCS Band), 33dBm(at PCS Band); (2)Efficiency: 55(at 850 Band), 55(at 900 Band), 49(at DCS Band), 49%(at PCS Band); (3)Pin: 3dBm; (4)EDGE Pout: 28.5(at 850 Band), 28.5(at 900 Band), 28(at DCS Band), 28dBm(at PCS Band); (5)Efficiency: 22(at 850 Band), 22(at 900 Band), 25(at DCS Band), 25%(at PCS Band); (6)Pin: 3dBm.
Features
Features: (1)Very compact size - 5×5×1.0 mm3; (2)High GSM efficiency - GSM 850 55%, GSM900 55%, DCS 49%, PCS 49%; (3)High EDGE efficiency - GSM 850 22%, GSM 900 22%, DCS 25%, PCS 25%; (4)Positive supply voltage - 3.0 to 4.5 V; (5)50 Ω input and output impedances; (6)GPRS class 12; (7)CMOS band select and internal closed-loop power control for GSM Operation; (8)High-reliability InGaP technology; (9)Ruggedness 10:1; (10)No external Vref Required.

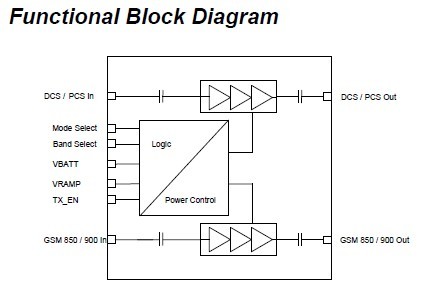

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TQM7M5005 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
TQM7M5005H |
TriQuint Semiconductor |
RF Transceiver GSM850/900 Quad Band |
Data Sheet |
|
|
||||||||||
