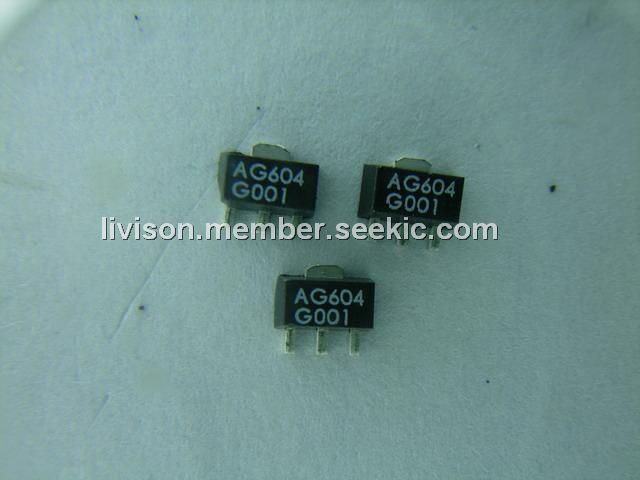

Product Summary

The AG604 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package.

Parametrics

Absolute maximum ratings: (1)Operating Case Temperature: -40 to +85℃; (2)Storage Temperature: -55 to +125℃; (3)DC Voltage: +7 V; (4)RF Input Power (continuous): +10 dBm; (5)Junction Temperature: +250℃.

Features

Features: (1)DC-6000 MHz; (2)+19.5 dBm P1dB at 900 MHz; (3)+33 dBm OIP3 at 900 MHz; (4)20.5 dB Gain at 900 MHz; (5)Single Voltage Supply; (6)SOT-86 SMT Package; (7)Internally matched to 50.

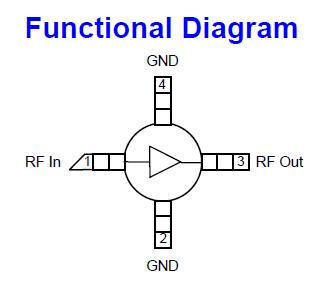

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AG604-86
AG604-86
Other

Data Sheet
Negotiable

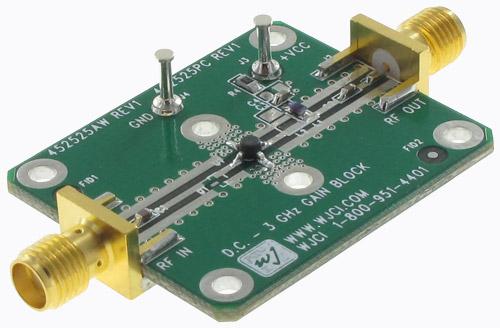

AG604-89PCB
AG604-89PCB
TriQuint Semiconductor
RF Development Tools 700-2400MHz Eval Brd 19.5dBm 21.5dB Gain
Data Sheet
0-1: $40.00
AG604-89G
AG604-89G
TriQuint Semiconductor
RF Amplifier DC-6000MHz 20.5dB Gain@900MHz
Data Sheet
0-1: $1.22
1-25: $0.92
25-100: $0.70
100-250: $0.67
AG604-86PCB
AG604-86PCB
TriQuint Semiconductor
RF Development Tools 700-2400MHz Eval Brd 19.5dBm 21.5dB Gain
Data Sheet
0-1: $40.00
AG604-86G
AG604-86G
TriQuint Semiconductor
RF Amplifier DC-6000MHz 20.5dB Gain@900MHz
Data Sheet
0-1: $1.64
1-25: $1.24
25-100: $0.94
100-250: $0.89
