Product Summary
The LMX2531LQ1700E is a High Performance Frequency Synthesizer System with Integrated VCO.
Parametrics
Absolute maximum ratings: (1)Power Supply Voltage: VCC:-0.3V to 3.5V, All other pins:-0.3V to 3.0V; (2)Storage Temperature Range:-65℃ to 150℃; (3)Lead Temperature (solder 4 sec.):+ 260℃.
Features
Features: (1)Multiple Frequency Options Available:See Selection Guide Below, Frequencies from: 553 MHz - 3132 MHz; (2)PLL Features:Fractional-N Delta Sigma Modulator Order programmable up to 4th order,FastLock/Cycle Slip Reduction with Timeout Counter,Partially integrated, adjustable Loop Filter,Very low phase noise and spurs; (3)VCO Features:Integrated tank inductor,Low phase noise; (4)2.8 V to 3.2 V Operation; (5)Low Power-Down Current; (6)Package: 36 Lead LLP.

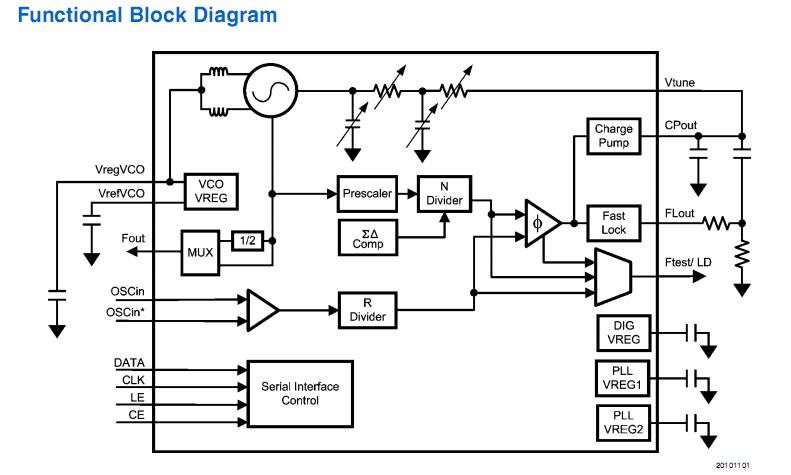

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMX2531LQ1700E/NOPB |
National Semiconductor (TI) |
Phase Locked Loops (PLL) |
Data Sheet |
|
|
||||||||||||
