Product Summary
The IR2104S is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic.
Parametrics
IR2104S absolute maximum ratings: (1)VB, High side floating absolute voltage: -0.3 to 625V; (2)VS, High side floating supply offset voltage: VB - 25 to VB + 0.3 V; (3)VHO, High side floating output voltage: VS - 0.3 to VB + 0.3 V; (4)VCC, Low side and logic fixed supply voltage: -0.3 TO 25 V; (5)VLO, Low side output voltage: -0.3 to VCC + 0.3 V; (6)TJ, Junction temperature: 150℃ max; (7)TS, Storage temperature: -55 to 150℃; (8)TL, Lead temperature (soldering, 10 seconds): 300℃ max.
Features
IR2104S features: (1)Floating channel designed for bootstrap operation Fully operational to +600V; (2)Tolerant to negative transient voltage dV/dt immune; (3)Gate drive supply range from 10 to 20V; (4)Undervoltage lockout; (5)3.3V, 5V and 15V input logic compatible; (6)Cross-conduction prevention logic; (7)Internally set deadtime; (8)High side output in phase with input; (9)Shut down input turns off both channels; (10)Matched propagation delay for both channels; (11)Also available LEAD-FREE.

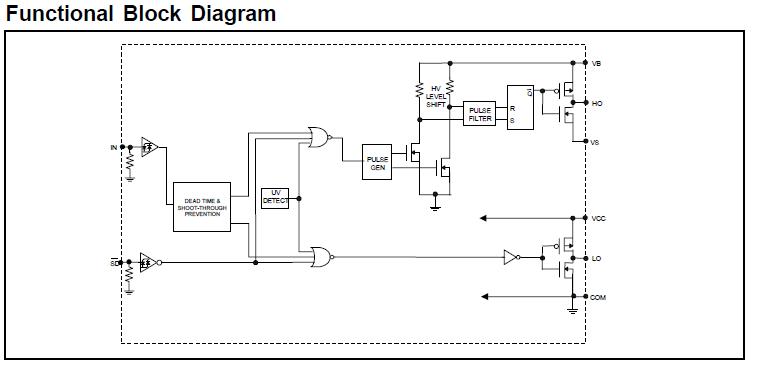

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IR2104S |
|

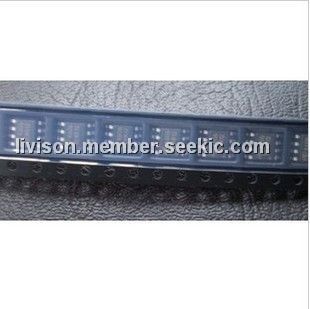

IC DRIVER HIGH/LOW SIDE 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
 |
IR2104SPBF |
International Rectifier |
Power Driver ICs |
Data Sheet |
|
|
||||||||||||
|
IR2104STRPBF |
International Rectifier |
Power Driver ICs Hlf Brdg Drvr 1 Inpt + Invrt ShutDwn Pin |
Data Sheet |
|
|
||||||||||||
|
IR2104STR |
|
IC DRIVER HIGH/LOW SIDE 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
