Product Summary

The AT25F4096W provides 4,194,304 bits of serial reprogrammable Flash memory organized as 524,288 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT25F4096W is available in a space-saving 8-lead EIAJ SOIC and 8- lead SAP packages.

Parametrics

Absolute Maximum Ratings: (1)Operating Temperature: -40℃ to +85℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +5.0V; (4)Maximum Operating Voltage: 4.2V; (5)DC Output Current: 5.0mA.

Features

Features: (1)Serial Peripheral Interface (SPI) Compatible; (2)Supports SPI Modes 0 (0,0) and 3 (1,1); (3)33 MHz Clock Rate; (4)Byte Mode and 256-byte Page Mode for Program Operations; (5)Sector Architecture; (6)Product Identification Mode; (7)Low-voltage Operation; (8)Sector Write Protection; (9)Write Protect (WP) Pin and Write Disable Instructions for both Hardware and Software Data Protection; (10)Self-timed Program Cycle (30 μs/Byte Typical); (11)Self-timed Sector Erase Cycle (1 second/Sector Typical); (12)Single Cycle Reprogramming (Erase and Program) for Status Register; (13)High Reliability; (14)8-lead EIAJ SOIC and 8-lead Small Array Package (SAP).

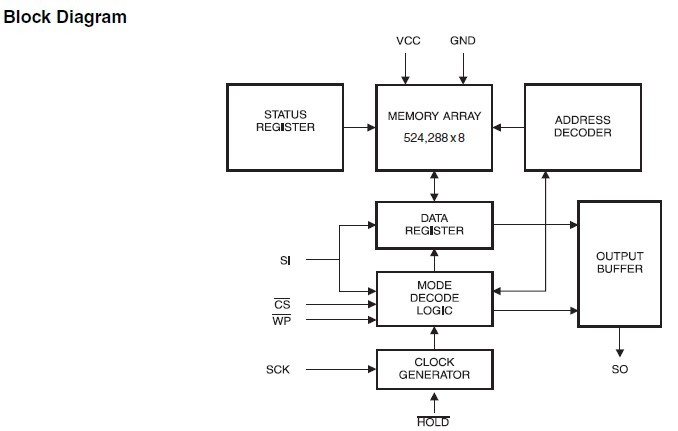

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AT25F4096W-10SU
AT25F4096W-10SU
Other

Data Sheet
Negotiable
AT25F4096W-10SU-2.7
AT25F4096W-10SU-2.7

IC FLASH 4MBIT 33MHZ 8SOIC
Data Sheet
Negotiable
