Product Summary

The TQM7M5012 is a ultra-small (5x5mm), GSM/EDGE Polar PAM for handset applications. This module has been optimized for excellent EDGE efficiency, Rx band noise performance, ACPR and EVM in an open loop polar modulation environment at EDGE class E2+ operation while maintaining high GSM/GPRS efficiency. High reliability is assured by utilizing TriQuints 3rd generation InGaP HBT technology and by TriQuints proven module design techniques. The low profile, ultra-small package is enabled via TriQuints CuFlipTM technology.

Parametrics

Absolute maximum ratings: (1)GSM Pout: 35(at 850 Band), 34.7(at 900 Band), 33(at DCS Band), 32.7dBm(at PCS Band); (2)Efficiency: 53(at 850 Band), 55(at 900 Band), 48(at DCS Band), 50%(at PCS Band); (3)Pin: 6dBm; (4)EDGE Pout: 29(at 850 Band), 29(at 900 Band), 28(at DCS Band), 28dBm(at PCS Band); (5)Efficiency: 25(at 850 Band), 25(at 900 Band), 25(at DCS Band), 26%(at PCS Band); (6)Pin: 6dBm.

Features

Features: (1)Ultra-small 5x5mm form factor; (2)GSM/EDGE Multi-Mode Capability; (3)90 dBm Typical Rx Noise; (4)38 dBc Typical ACPR (200KHz) ; (5)66 dBc Typical ACPR (400 KHz); (6)76 dBc Typical ACPR (600 KHz); (7)1% Typical EVM rms; (8)50 dB Typical Dynamic Range; (9)GPRS Class 12; (10)Internally Matched Input and Output; (11)RoHS, MSL260C pending.

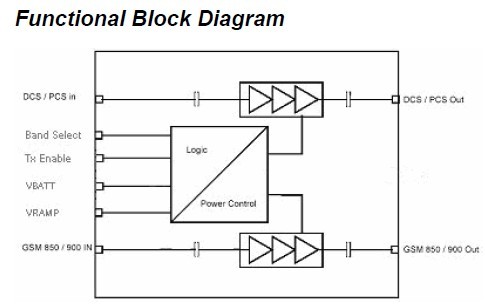

Diagrams

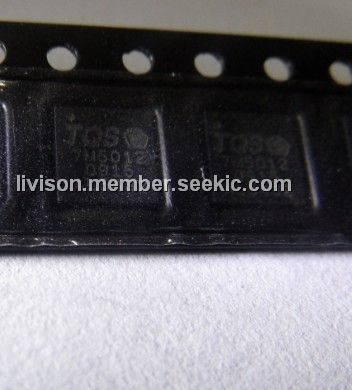

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TQM7M5012
TQM7M5012
TriQuint Semiconductor
RF Amplifier Quadband EDGE Polar PAM
Data Sheet
0-1: $4.86
1-25: $4.05
25-100: $3.38
100-1000: $2.81
1000-2500: $2.35
TQM7M5012H
TQM7M5012H
TriQuint Semiconductor
RF Amplifier Quadband EDGE Pola PAM Halogen-Free
Data Sheet
0-1250: $1.20
1250-2500: $1.20
