Product Summary

The OPA340NA is a rail-to-rail CMOS operational amplifier which is optimized for low voltage, single supply operation. Rail-to-rail input/output and high speed operation make them ideal for driving sampling analog-to-digital converters. They are also well suited for general purpose and audio applications as well as providing I/V conversion at the output of D/A converters. Single, dual, and quad versions have identical specifications for design flexibility.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: 5.5V; (2)Signal Input Terminals, Voltage: (V–) –0.5V to (V+) +0.5V, Current: 10mA; (3)Output Short-Circuit: Continuous; (4)Operating Temperature: –55℃ to +125℃; (5)Storage Temperature: –55℃ to +125℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃.

Features

Features: (1)rail-to-rail input; (2)rail-to-rail output (within 1mV); (3)MicroSIZE packages; (4)wide bandwidth: 5.5MHz; (5)high slew rate: 6V/ms; (6)low thd+noise: 0.0007% (f = 1kHz); (7)low quiescent current: 750mA/channel; (8)single, dual, and quad.

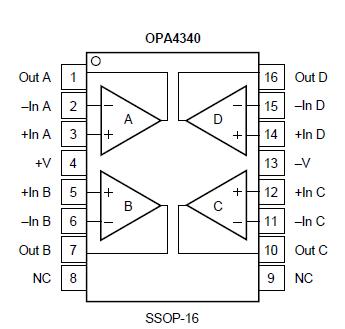

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OPA340NA
OPA340NA
Other

Data Sheet
Negotiable
OPA340NA/250
OPA340NA/250
Texas Instruments
Operational Amplifiers - Op Amps Single-Supply Rail-to-Rail
Data Sheet
0-1: $1.64
1-25: $1.29
25-100: $1.17
100-250: $0.95
OPA340NA/3K
OPA340NA/3K
Texas Instruments
Operational Amplifiers - Op Amps Single-Supply Rail-to-Rail
Data Sheet
0-1: $1.66
1-25: $1.28
25-100: $1.16
100-250: $0.96
OPA340NA/3KG4
OPA340NA/3KG4
Texas Instruments
Operational Amplifiers - Op Amps Single-Supply Rail-to-Rail
Data Sheet
0-2150: $0.67
2150-3000: $0.64
3000-6000: $0.61
6000-12000: $0.60
OPA340NA/250G4
OPA340NA/250G4
Texas Instruments
Operational Amplifiers - Op Amps Single-Supply Rail-to-Rail
Data Sheet
0-1: $1.55
1-25: $1.24
25-100: $1.13
100-250: $1.02
